Tooling & Design

Expert Tooling & Desgin

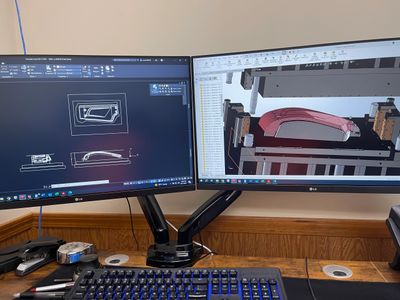

At Precision Cutter & Tool, we specialize in designing tooling for manufacturing, reverse engineering of parts without cad to design dies, & individual parts using the latest technology available to the industry. We work closely with our customers to design tooling that meets their needs and expectations.  Utilizing SolidWorks, Inventor, and AutoCAD our tool & die designers will bring your project into production, and can import or export to a wide variety of file types.

Tool & Die Design, Solidworks, AutoCad

Tooling and die design built at Precision Cutter & Tool

Request a Quote

Progressive Dies

A progressive die has multiple stations, or places where work is performed and the finished part is created in steps as it progresses through the die. We start with a strip of steel, aluminum, copper, or most any metal.

Desgined Progressive Die

Design Part from Customer

Design Part from Customer

Tool & Die Design, Tool & Die, Progressive Stamping Die

Design Part from Customer

Design Part from Customer

Design Part from Customer

Tool & Die Design, Tool & Die

Designed Progressive Die

Designed Progressive Die

Designed Progressive Die

Tool & Die Design, Tool & Die, Progressive Stamping Die

Finished Part

Designed Progressive Die

Designed Progressive Die

Tool & Die Design, Tool & Die, Progressive Stamping Die

Compound Dies

 Compound dies produce a complete blank in one station at every stroke of the press. Basically, these dies perform one or more operations at the same time. For instance, they can blank (cut the outer form) and pierce (cut the inner form) of a shape simultaneously

Draw Form Dies

Draw dies create the part shape by controlling metal flow into a cavity and over the forming punch. Draw dies utilize a special pressure-loaded plate or ring called a draw pad or blank holder to control the metal's flow into the cavity. This plate prevents the metal from wrinkling as it flows into the cavity

Designed Draw Form Die

Designed Draw Form Die

Designed Draw Form Die

Tool & Die Design, Tool & Die, Draw Form Stamping Die

Finished Part

Designed Draw Form Die

Designed Draw Form Die

Tool & Die Design, Tool & Die, Draw Form Stamping Die

Part from a Draw Form Die

Part from a Draw Form Die

Part from a Draw Form Die

Tool & Die Design, Tool & Die, Draw Form Stamping Die

Part from a Draw Form Die

Part from a Draw Form Die

Part from a Draw Form Die

Tool & Die Design, Tool & Die, Draw Form Stamping Die

Transfer Die

 Transfer dies can include a single die, a number of dies, or machines arranged in a row to form a production line. The transfer press process begins with a strip of metal fed into the first station where the blank is cut. The blank is then transferred mechanically(or manually) through various forming stations.

Tool & Die Design, Tool & Die

Injection Mold Die

 A moulding die is a tool used in the injection moulding process to create the desired shape of a component.

Designed Injection Mold Die

Finished Injection Mold Part

Finished Injection Mold Part

Tool & Die Design, Tool & Die, Injection Mold Die

Finished Injection Mold Part

Finished Injection Mold Part

Finished Injection Mold Part

Tool & Die Design, Tool & Die, Injection Mold Die

Lead Mold Die

 Gravity die casting, sometimes known as permanent mould casting, is a means of die casting high-quality components in a range of low temperature metals. Unlike pressure die casting, gravity die casting involves a simple pouring of the molten metal into the mould without any additional force applied.

Jigs & Fixtures

 Jigs are tools that hold a cutting tool in place or guide it as it performs a repetitive task like drilling or tapping holes. Fixtures, on the other hand, do not guide a cutting tool, but hold a workpiece steady in a fixed position, orientation, or location.
